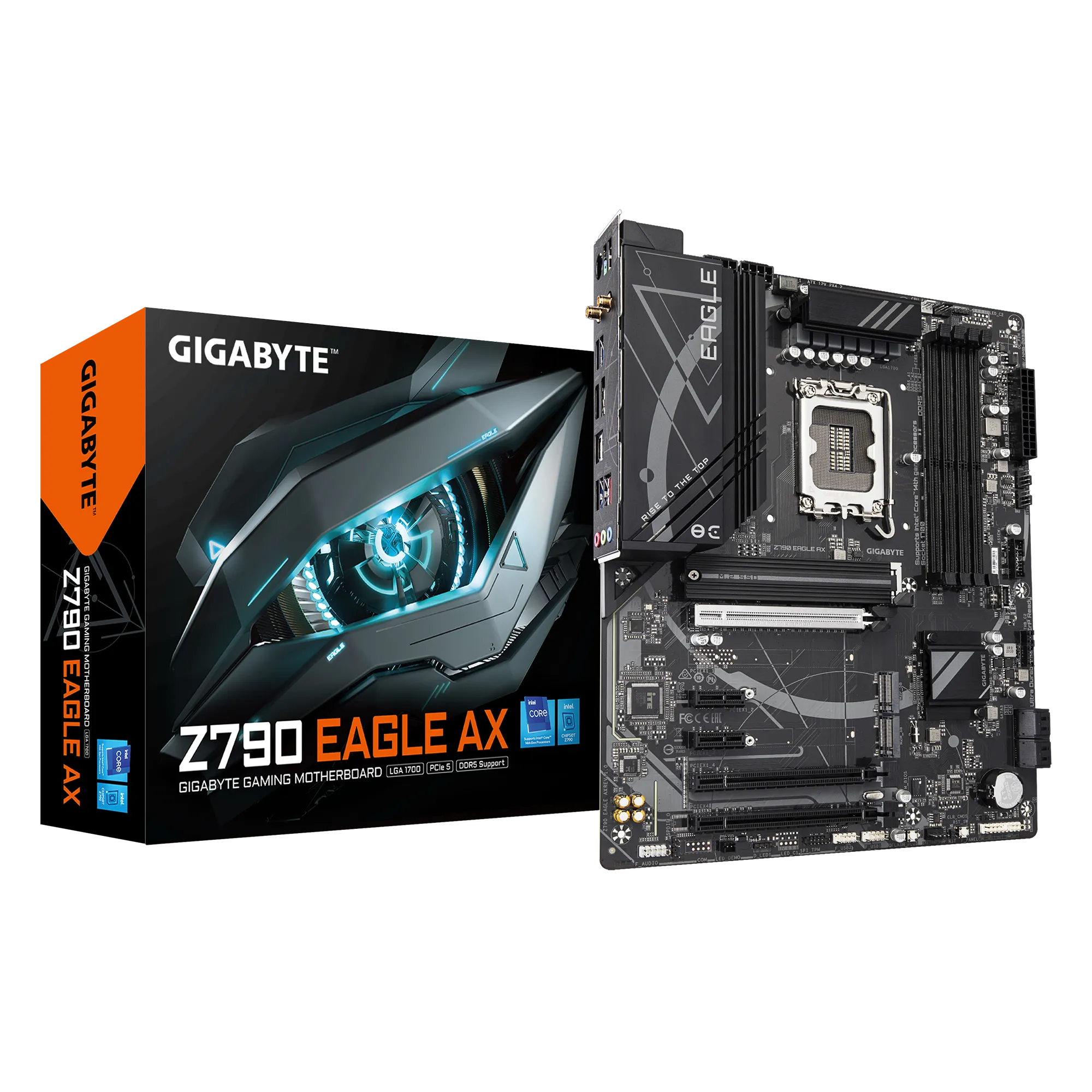

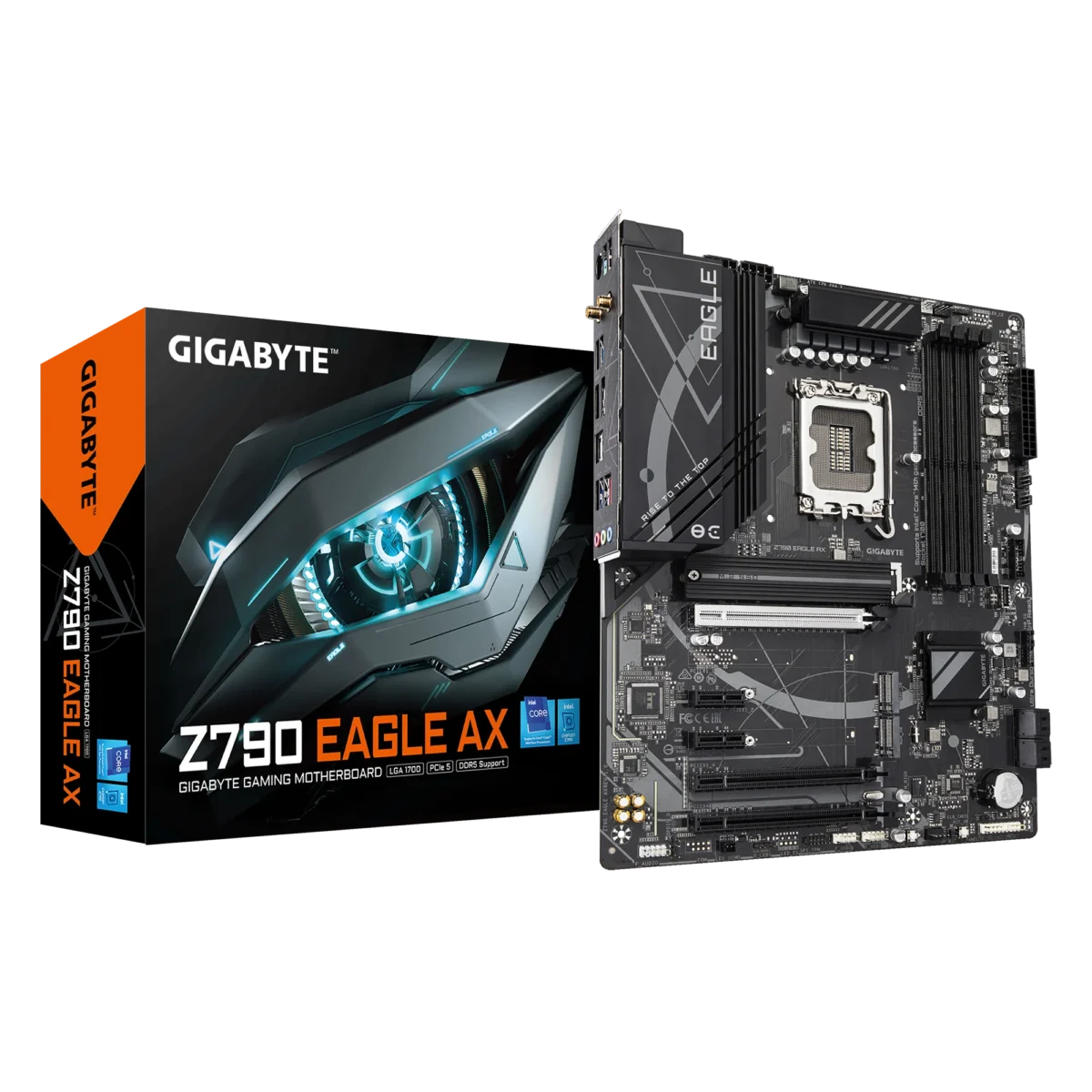

Gigabyte Z790 EAGLE AX Motherboard (DDR5 • PCIe 5.0 • ATX • Wi‑Fi 6E)

A solid mid-tier Intel Z790-based board built for 12th, 13th, and 14th Generation Core processors. It balances future-ready features such as PCIe 5.0, DDR5 high performance, and fast connectivity in a budget-friendly ATX package.

✅ Key Features:

• CPU Support: Intel Core 14th/13th/12th Gen processors on LGA 1700 socket

• Memory: 4× DDR5 DIMM slots, up to 192 GB, XMP 3.0 support, overclockable to DDR5 7600+ MT/s

• PCIe Expansion:

  • 1× PCIe 5.0 x16 (primary GPU slot with EZ‑Latch quick release)

  • 1× PCIe 4.0 x16 (runs at x4)

  • 1× PCIe 3.0 x16 (x1 mode) + 2× PCIe 3.0 x1 slots

• Storage: 3× M.2 PCIe 4.0 x4 (one supports SATA mode) + 4× SATA III ports (RAID 0/1/5/10 supported)

• Networking: Realtek 2.5 Gb Ethernet, Intel Wi‑Fi 6E (AX211), Bluetooth 5.3

• I/O Ports: HDMI 2.1, DisplayPort 1.2, USB Type‑C Gen2 (rear), USB Type‑C Gen1 (internal), USB 3.2 Gen2/Gen1, USB 2.0, PS/2, PS/2; includes Q‑Flash Plus button for BIOS updates without CPU/GPU/RAM

• Cooling & Build: Smart Fan 6 with multiple temperature sensors, hybrid fan headers with FAN-STOP support; VRM heatsinks and M.2 Thermal Guard for thermal stability

• DIY Features: Q‑Flash Plus, EZ‑Latch PCIe slot, Clear CMOS and reset buttons, dual‑copper 6‑layer PCB, EZ M.2 Latch, Thunderbolt card headers, TPM header

• Form Factor: ATX (30.5 × 24.4 cm)
