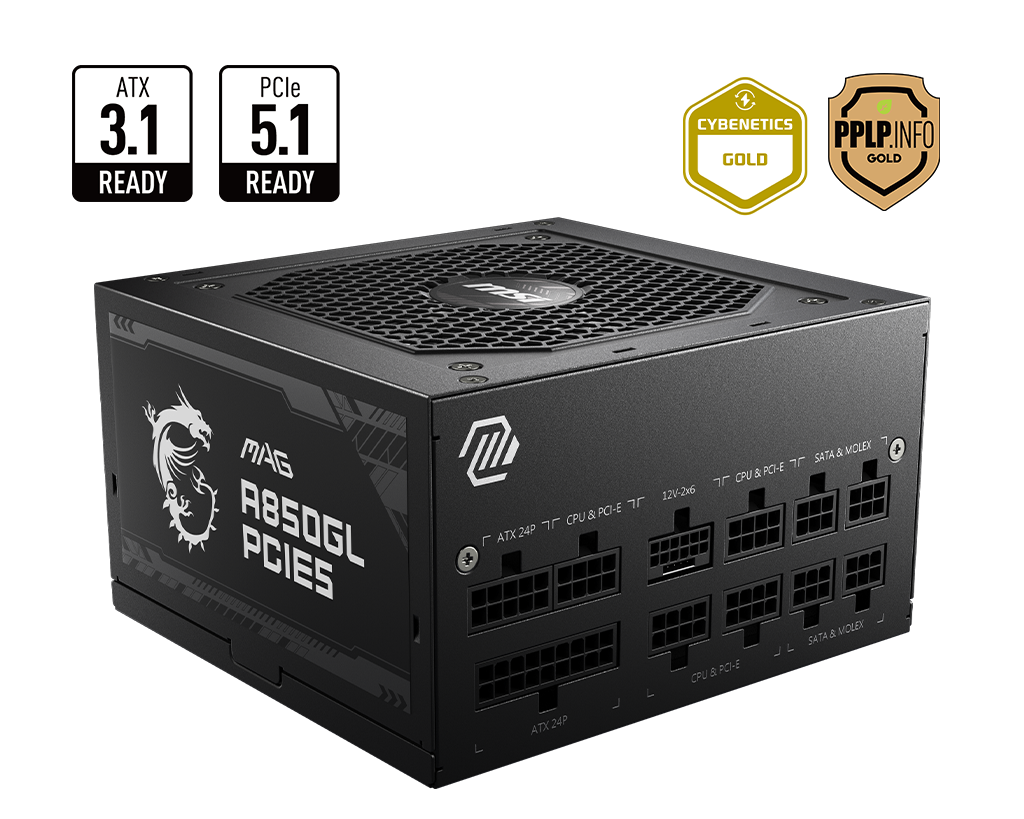

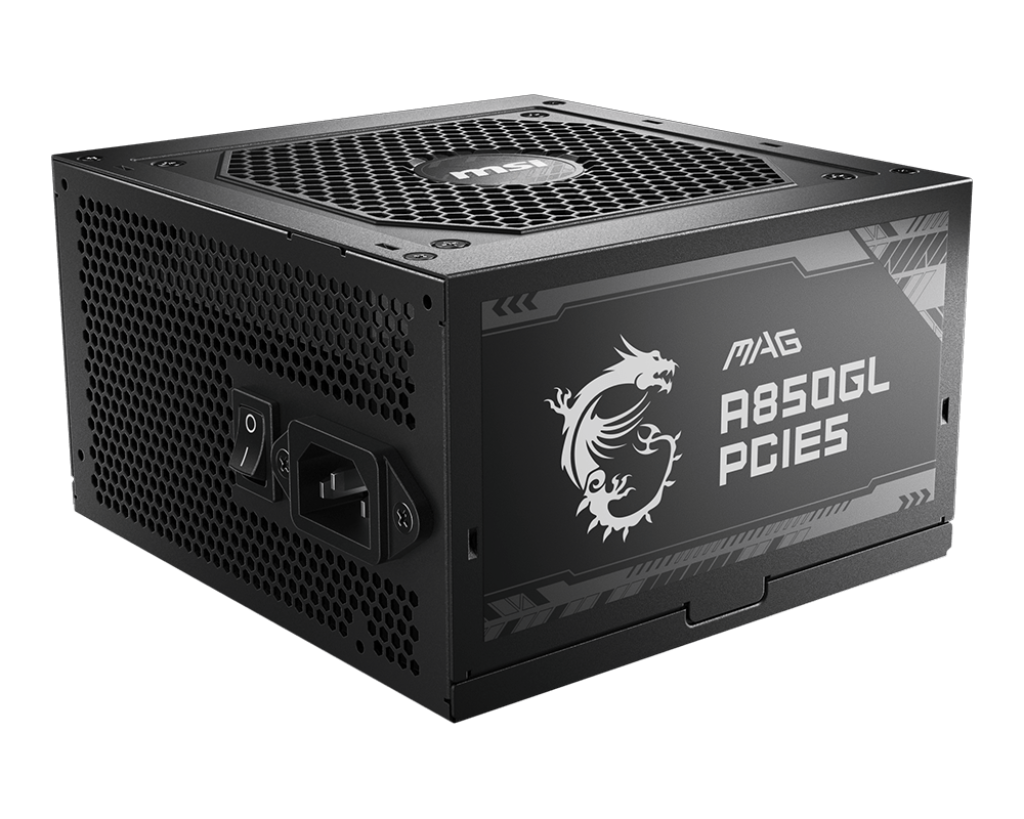

MSI MAG A850GL PCIE5 850W MODULAR POWER SUPPLY

ATX 3.1 ready, native PCIe 5.1 dual-color
16-pin cable
Supports NVIDIA®
GeForce RTX™
40 Series
graphics cards

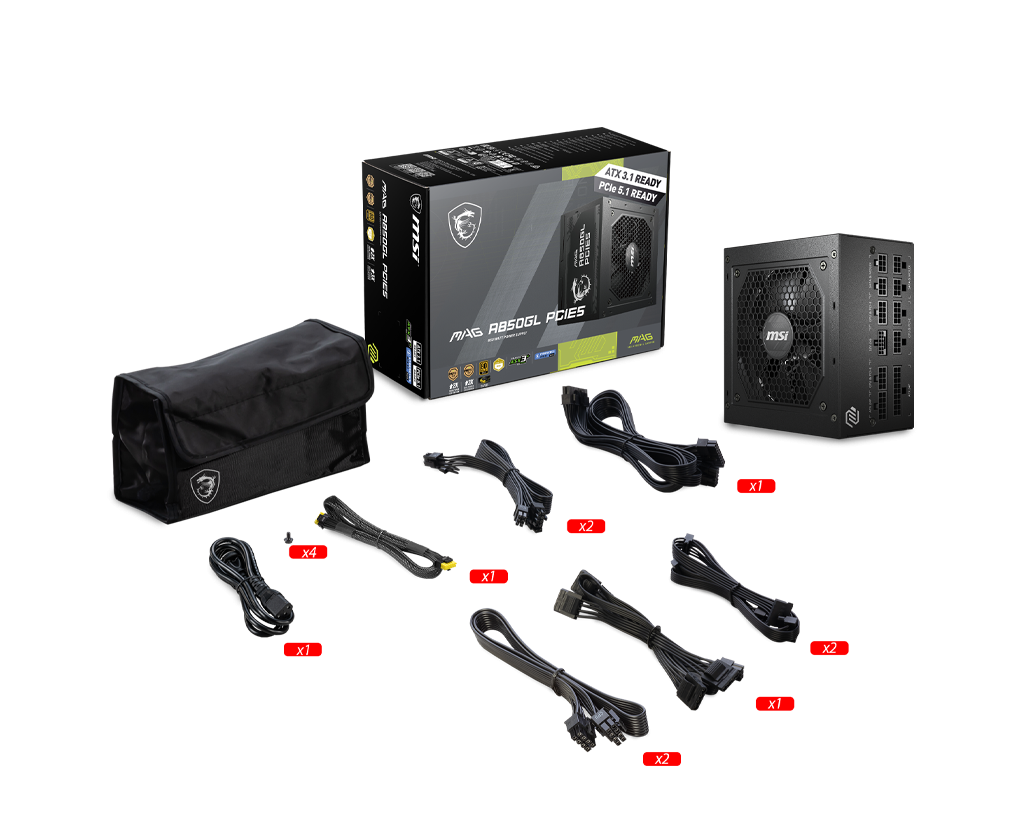

Full modular design,Flat cables
80 Plus Gold certified for high efficiency
Active PFC design,Industrial level protection
with OVP,OCP,OPP,OTP, SCP,UVP
120mm Fluid Dynamic Bearing Fan
LLC Full Bridge Topology with DC-DC
module design

Efficiency Rating 80 PLUS Gold (up to 90%)
Modular Yes (full modular)
Fan Size 120 mm
Fan Bearing Fluid Dynamic Bearing
Dimensions (DxWxH) 140 x 150 x 86 mm
PFC Type Active PFC
Input Voltage Range 100~240 VAC
Power Watt 850W
Power Excursion 1700W (*up to 200% of the PSU’s rated power for
100μs)
Input Frequency Range 47-63Hz
Protection OCP / OVP / OPP / OTP / SCP / UVP
ATX (24 pin) 1
EPS (4+4 pin) 2
PCI-E 5.0 (16 pin) 1 (600W)
PCI-E (6+2 pin) 4
SATA (15 pin) 8
MOLEX (4 pin) 4
FDD (4 pin) 1
